MNxx05 44 Lb-In

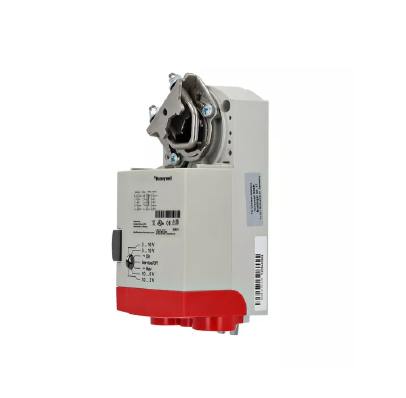

MNxx05 44 Lb-In. And MNxx10 88 Lb-In. Non-SpringReturn Direct Coupled Actuators
MNxx05/10 Series non-spring return direct coupled damper actuators providemodulatin, 2-positionand floating control for air dampers, VAV units, air handlers, ventilation flaps, and louvers.
Overview

MNxx05 44 lb-in. and MNxx10 88 lb-in. Non-Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating,and airconditioning (HVAC) systems. They can drive a variety of quarter-turn, fi nal control elements.
Applications include: Volume control dampers, mounted directly to the drive shaft or remotely (with the use of accessoryhardware). Quarter-turn rotary valves, such as ball or butterfl y valves mounted directly to the drive shaft. Linear stroke globe orcage valves mounted with linkages to provide linear actuation.
Features & Benefi ts:
Declutch for manual adjustment
Adjustable mechanical end limits
Removable access cover for direct wiring
Mountable in any orientation
Function selection and service/off switch
Certifi cations:
UL/cUL
UL873 Plenum Rating, File No. E4436; Guide No. XAPX
CE
