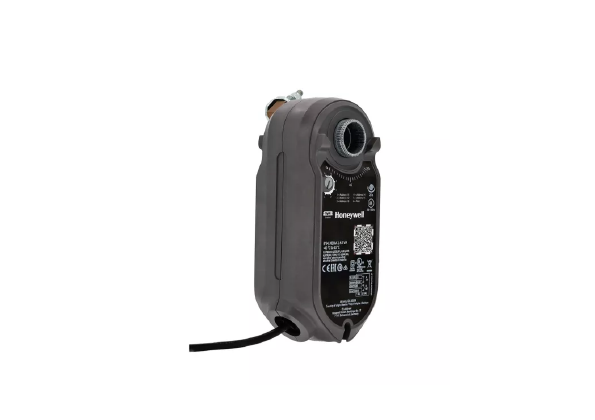

MSxx03 Diamond Series 27 Lb-In

MSxx03 Diamond Series 27 Lb-In. Spring Return DirectCoupled Actuators
Used within heating, ventilating, and airconditioning (HVAC) systems to drive a variety of quarter-turn,final control elements requiring spring return fail-safe operation.
Overview

Honeywell has long been a leading name in actuators, and the Diamond Spring Return Actuator is the latest addition to thepopular Honeywell lineup. You can count on the Diamond Actuator to support your product with reliable performance day inand day out. A simplifi ed shaft adapter and integral conduit connector saves space and eliminates the need for additional toolsor conduit connectors, and 360-degree conduit connectors swivel allowing for easy conduit installation at almost any neededangle. The combination of high quality, small size and competitive price makes the Diamond Actuator the perfect choice forhigh-volume, low-torque applications, including: rooftop units, economizers, compact control dampers and control valves.
Features & Benefi ts:
Modulating, Universal, Sylk Communicating and Fire & Smoke models available
Easily accommodates most length, width and depth restrictions
27 lb-in (3 Nm) torque
24Vac / 24Vdc supply voltage
Low energy consumption
Self-centering shaft adapter (SCSA) cuts installation time
Fast 30s stroke test mode available
With and without self centering shaft adapter
With and without 360 degree conduit connectors
With and without auxiliary switches (2 x SPST, fi xed at 10⁰ and 80⁰, 125Vac, 1A resistive load)
Certifi cations:
UL60730
IEC 60730-1 and Part 2–14
UL1097 for Double Insulation
CE Certifi cation Low Voltage Directive 2014/35/EU
CE EMC 2004/108/EC
Switch cables are UL certifi ed only
Enclosure Ratings:
IP54, in horizontal and cable down positions, IP50 in cable up position.
