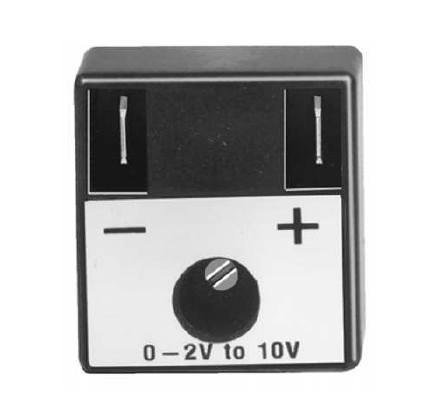

Q769 Adjustable Signal Adapter

Q769 adjustable signal adapters are accessory devices that provide a modulating signal to M7405 andM7415 actuators when used with a controller.
Overview

Q769 adjustable signal adapters are accessory devices that provide a modulating signal to M7405 and M7415 actuators whenused with a controller. Two female quick connect terminals on the adapters connect to terminals P and P1 of the actuators. Twomale quick connect terminals are available for fi eld wiring an additional actuator. The adapters are designed to operate in a -40to 125 °F (-40 to 52 °C) temperature range and a 5 to 95% relative humidity (RH) range.
